Automatic Identification Technologies - AIT ELMS Tablets, Scanners and Printers. The following equipment has been tested and is supported by ELMS Support personnel.

ELMS Supported Handheld Devices

ATTENTION: ELMS does not accredit/certify any specific device for use on DoD networks or in DoD facilities. Approval and certification of mobile devices is the responsibility of each organization as they research, acquire, administer, and maintain those devices on their local network. This list includes devices that have been tested and confirmed to work with the ELMS software which is accredited under an ATO. Inclusion in this list does not grant or imply certification for use on DoD networks. Approval for specific devices should be sought from each organizations’ Cyber team, executive leadership, or other approving body.

NOTE: Items identified with an asterisk (*) are available for purchase from an Army IDIQ contract. Click HERE for a link to the contract details.

Device Model	System Specs

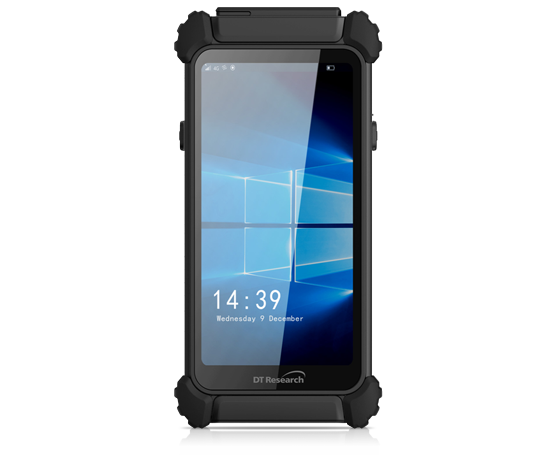

DT Research DT362GL	Windows Built-in CAC Reader 1D/2D Barcode Reader NFC or UHF RFID reader

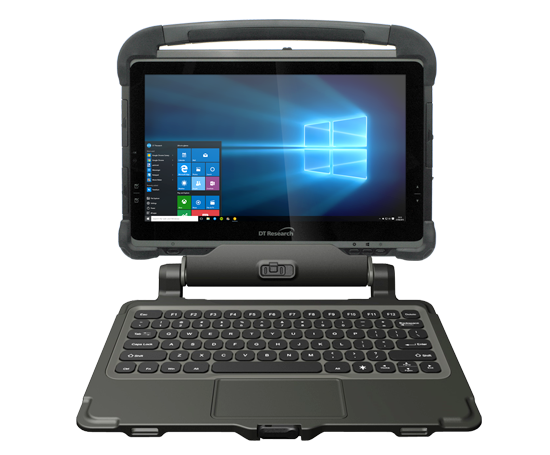

DT Research DT311Y	Windows Built-in CAC Reader 1D/2D Barcode Reader UHF RFID reader
Getac F110*	Windows Built-in CAC Reader 1D/2D Barcode Reader Configuration QRG
Getac UX10*	Windows Optional Expansion Slots for: CAC Reader 1D/2D Barcode Reader Configuration QRG

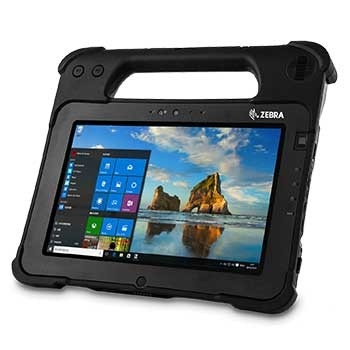

Zebra L10 XPAD Rugged Tablet	Windows Optional CAC Reader (XPAD Handle) Optional 1D/2D Barcode Reader (XPAD Handle)

Discontinued Handheld Devices

These handheld devices have been discontinued by the manufacturer for purchase, but are still supported for use with ELMS Modules.

Device/Model

Features

Juniper Mesa 2 & 3

Windows

Mesa 2: No CAC Reader

Mesa 3: Built in CAC Reader

Optional 1D/2D Barcode Reader

Optional RFID

General Purpose Tethered / Wireless Barcode Scanners

For use with ELMS Maintenance & Utilization and Warehouse Management Modules.

Device/Model	Features

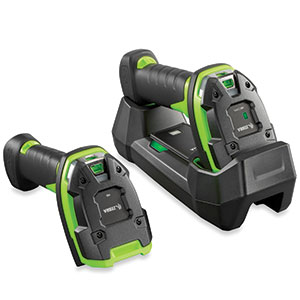

Zebra DS3608/DS3678 Ultra-Rugged Barcode Scanner*	DS3678: Wireless DS3608: Tethered 1D/2D Barcode Reader

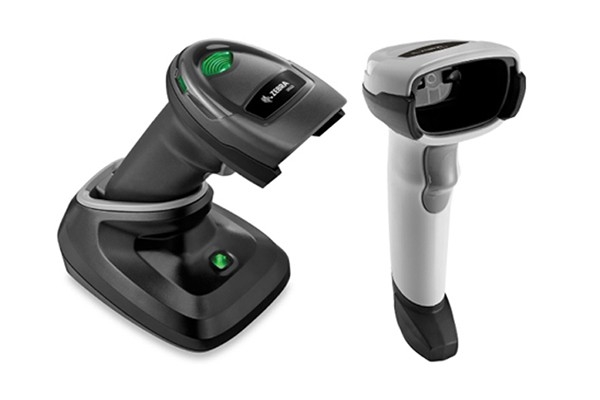

Zebra DS2208/DS2278 Barcode Scanner	DS2278: Wireless DS2208: Tethered 1D/2D Barcode Reader

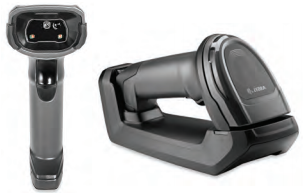

Zebra DS8108/DS8178 Barcode Scanner	DS8178: Wireless DS8108: Tethered 1D/2D Barcode Reader
Honeywell Granit 1910i/1911i Barcode Scanner*	1911i: Wireless 1910i: Tethered 1D/2D Barcode Reader

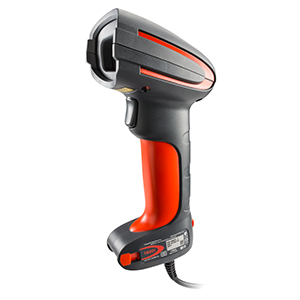

Honeywell Granit 1980i Barcode Scanner*	1980i: Tethered Extended Range 1D/2D Barcode Reader

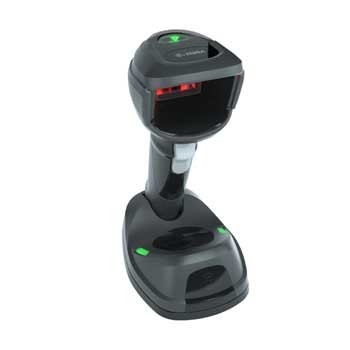

Zebra DS9908r Corded Hybrid RFID Scanner	1D/2D Barcode Reader RFID
Zebra RFD8500 RFID Sled	BLUETOOTH 1D/2D Barcode Reader RFID *must be paired with compatible Zebra or other mobile device

Discontinued Barcode Scanners w/ ELMS Support

These Barcode Scanners have been discontinued by the manufacturer for purchase, but are still supported for use with ELMS Maintenance & Utilization and Warehouse Management Modules.

Device/Model

Features

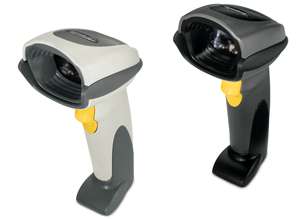

Zebra DS6707/DS6708 Barcode Scanner

DS6707: Tethered

DS6708: Tethered

1D/2D Barcode Reader

Misc. Equipment

Device/Model
USB External Smart Card Reader
USB External Numeric Keypad
USB Signature Pad

ELMS Supported Label Printers

Printer Settings in Chrome: For detailed instruction on printing labels with Chrome web browser, please view this RefDoc.

COMPATIBILITY: Any 203dpi printer manufactured by Zebra, Honeywell, or Intermec (and uses the standard ZPL/IPL interpreter language) should work with ELMS. Some of these printers have optional 300 and 600 DPI versions that will not work with ELMS. Please contact our Helpdesk if you are questioning the compatibility of a printer not listed below.

RFID NOTE: The Zebra ZT610 and the R110Xi4 are the ONLY RFID printers tested and confirmed to work with ELMS.

NOTE: Items identified with an asterisk (*) are available for purchase from an Army IDIQ contract.

Printer Model	Features
Zebra ZT610	Print Resolution(dpi): 203 RFID Capable Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0
Zebra ZT510*	Print Resolution(dpi): 203 Communications: USB, Serial, Gigabit Ethernet, Bluetooth LE
Zebra GK420	Print Resolution(dpi): 203 Thermal Transfer: GK420t \| Direct Thermal: GK420d Communications: USB, Serial, Parallel, or Ethernet *Recall: Power Supply (GK420)
Zebra ZT230	Print Resolution(dpi): 203 Perfect replacement for S4M Communications: USB 2.0, RS-232 Serial
Intermec PM43G*	Print Resolution(dpi): 203 Communications: USB 2.0, RS-232 Serial, 10/100 Ethernet, Bluetooth, WiFi
Intermec PD43G*	Print Resolution(dpi): 203 Communications standard: USB, USB Host \| Optional: Ethernet (NIC), Parallel Port, Serial Port, Bluetooth, Wifi

Discontinued - ELMS Supported Label Printers

DISCONTINUED: These printers are no longer available for purchase but continue to work and be supported by ELMS.

Printer Model	Features
Zebra TLP 2844-Z	Discontinued for purchase \| Supported for use by ELMS *Recall: Power Supply
Zebra R110Xi4	Discontinued for purchase \| Supported for use by ELMS *Recall: Power Supply Setup Videos
Zebra RZ400	Discontinued for purchase \| Supported for use by ELMS
Zebra S4M	Discontinued for purchase \| Supported for use by ELMS
Intermec Easycoder PM4i	Discontinued for purchase \| Supported for use by ELMS
Intermec PD42G	Discontinued for purchase \| Supported for use by ELMS

Printer Ribbons/Labels

Property Accountability Module Label Types and Sizes

Label Size	UII Capable Label	Location Label
1" x 2"		✔
2" x 1.25"		✔
3" x 1"	✔	✔
4" x 1"	✔	✔
4" x 1" RFID	✔
4" x 1" RFID 1/8" Gap	✔

Warehouse Management Label Types and Sizes

Label Type	Size: 1.50" x .50"	Size: 3.00" x 2.00"	Size: 6.00" x 4.00"
Container		✔	✔
ICN	✔	✔	✔
Location		✔	✔
Shelf Life Extension		✔	✔
Stock Nbr		✔	✔
Expiring Items		✔
Inspection Due	✔

RECOMMENDATION: ELMS suggests using full polyester high tack labels with full resin ribbons. This produces the most durable labels to use on equipment.

RFID Label Information:

Offsets, Hanging tags, Ties & Mounts

RFID Accessories (.pdf 26 KB)

For immediate assistance with Printers and Labels, please contact the ELMS Helpdesk.

ELMS Offline App(s)

No WiFi in your warehouse? No Problem! ELMS presents Physical Inventory, one of many NEW ways to easily conduct your physical inventory counts. Go offline with this simple to use feature that lets you conduct a physical inventory without reliance on network/internet connectivity. Simply load your exported inventory data to a device, un-dock and go!

Whether it’s your standard PC, Tablet, or Mobile device, you’ll be able to pull up the app whenever you need to start capturing data, save it, and load it back into ELMS.

Physical Inventory Count - Offline Feature (PA Module)
Check out the Physical Inventory FAQ RefDoc for more information, or view our other QRG's on this feature.
